Update 2024/02/03: With IPv4 addresses becoming more scarce, I had to modify the connection string to a IPv6 version. Thankfully Supabase made it pretty easy so all I had to do was login to the retool app and update the connection config. Scrabble away!

Table of Contents

Origin of the idea
Plotting out the pipeline
Enabling the Database
Navigating a front-end form
Uplifting Home Page to showcase SQL

Origin of the idea

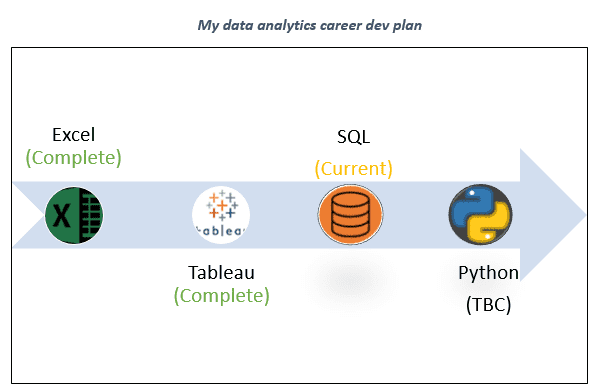

After spending time on various Excel and Tableau projects my next personal dev goal was to move onto the next tool in any data analyst's toolkit: SQL.

My first step was to find an idea that would provide a simple enough use case case to flex my SQL skills in a presentable way. I took to the subreddit /r/SQL for some inspiration where I was fortunate to find a comment that planted the seed of my project.

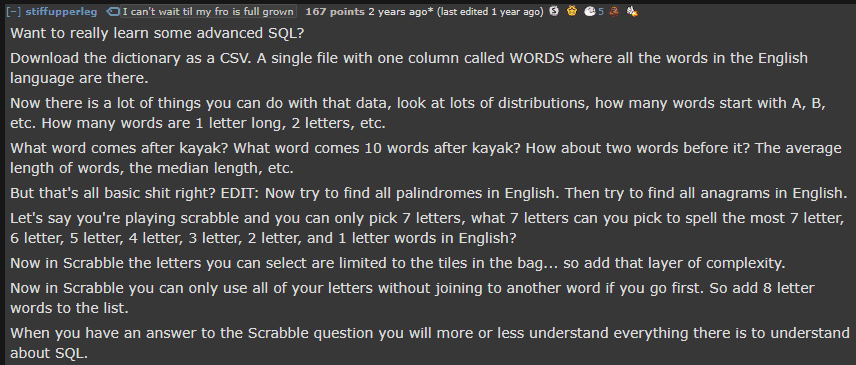

origin of idea

origin of idea v2

With my above-head-lightbulb at full brightness, I unpacked stiff's comment focusing on the Scrabble aspect. I extracted requirements I wanted to solve for:

A column with all words approved as per Scrabble guidelines (thanks StackOverflow!)
A column with each words' score value (Excel to the rescue!)
User's ability to enter any combination of letters, re-arranging to return all letters that can be made
A front-end method of capturing inputs, passing this to the database and returning it in a visually appealing way.

After documenting all of my requirements I realised I was going to need a pipeline.

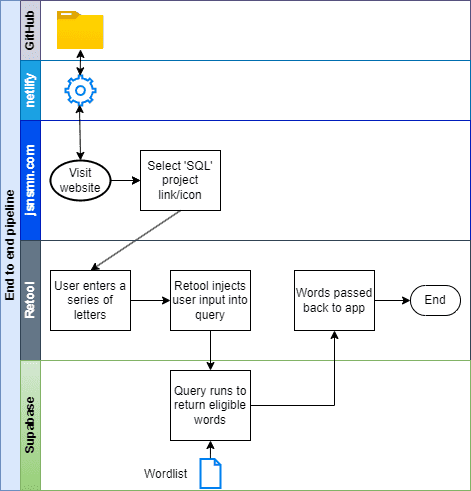

Plotting out the pipeline

data pipeline drawio

First came the data - thanks to a helpful stackoverflow post I was able to download a .txt file which listed all valid Scrabble words. A few Excel formulas helped calculate the score value of each word.

Now where do I store this data?

Enabling the Database

My searching for database solutions returned Supabase as a viable solution - it had robust API documentation and used postgres in the background. This was great as earlier I had uploaded my word list to a local postgres instance to practice queries, so I was familiar with the postgres syntax.

Navigating a front-end form

With my back-end database in place I needed to somehow figure out how to have it talk to a front-end form that would capture user input and feed a custom query based on this input to return relevant values.

My front-end knowledge is limited so this posed a challenge. As fate (or overlistening devices ready to personalise my ads) would have it, while scrolling Facebook one day I was presented with Retool. It was an app which supported an api to connect to Supabase AND allow for javascript functions to inject variable fields into a SQL query.

Working in a data field, I usually deplore my invasion of privacy to personalise my ad experience but in this case I'll make an exception.

Expandable SQL Text Box

Final SQL Query with Javascript injections

-- Create a temporary table 'letters' with the input values
WITH
  letters AS (
    SELECT
      unnest(
        ARRAY\\\\\[
          {{textInput1.value.toUpperCase()}},
          {{textInput2.value.toUpperCase()}},
          {{textInput3.value.toUpperCase()}},
          {{textInput4.value.toUpperCase()}},
          {{textInput5.value.toUpperCase()}},
          {{textInput6.value.toUpperCase()}},
          {{textInput7.value.toUpperCase()}},
          {{textInput8.value.toUpperCase()}},
          {{textInput9.value.toUpperCase()}},
          {{textInput10.value.toUpperCase()}},
          {{textInput11.value.toUpperCase()}},
          {{textInput12.value.toUpperCase()}},
          {{textInput13.value.toUpperCase()}},
          {{textInput14.value.toUpperCase()}},
          {{textInput15.value.toUpperCase()}}
        ]
      ) AS letter
  ),
  -- Count occurrences of each letter in 'letters'
  letter_counts AS (
    SELECT
      letter,
      COUNT(\\\\\*) AS count
    FROM
      letters
    GROUP BY
      letter
  )
-- Main query to find valid words
SELECT
  "Actual_Word",
  "Value"
FROM
  scrabble_Sql
  -- Join with 'letter_counts' to match words containing input letters
  JOIN letter_counts ON (
    LENGTH("Actual_Word") - LENGTH(REPLACE("Actual_Word", letter_counts.letter, ''))
  ) <= letter_counts.count
WHERE
  -- Filter words with length less than or equal to the count of input letters
  LENGTH("Actual_Word") <= (
    SELECT
      COUNT(\\\\\*)
    FROM
      letters
  )
  -- Exclude words with characters not in the input letters
  AND NOT EXISTS (
    SELECT
      1
    FROM
      regexp_split_to_table("Actual_Word", '') char
    WHERE
      char NOT IN (
        SELECT
          letter
        FROM
          letters
      )
  )
-- Group by 'Actual_Word' and 'Value'
GROUP BY
  "Actual_Word",
  "Value"
-- Filter words that use all input letters
HAVING
  COUNT(*) = (
    SELECT
      COUNT(DISTINCT letter)
    FROM
      letters
  )
-- Order by the word value in descending order
ORDER BY
  "Value" DESC;

It's alive! My query was behaving as expected and returned an an output where the highest scoring words were presented first and only instances of <= all letters were present in a word.

Now all that was left was to spruce up the front-end with a fresh coat of paint to the form design.

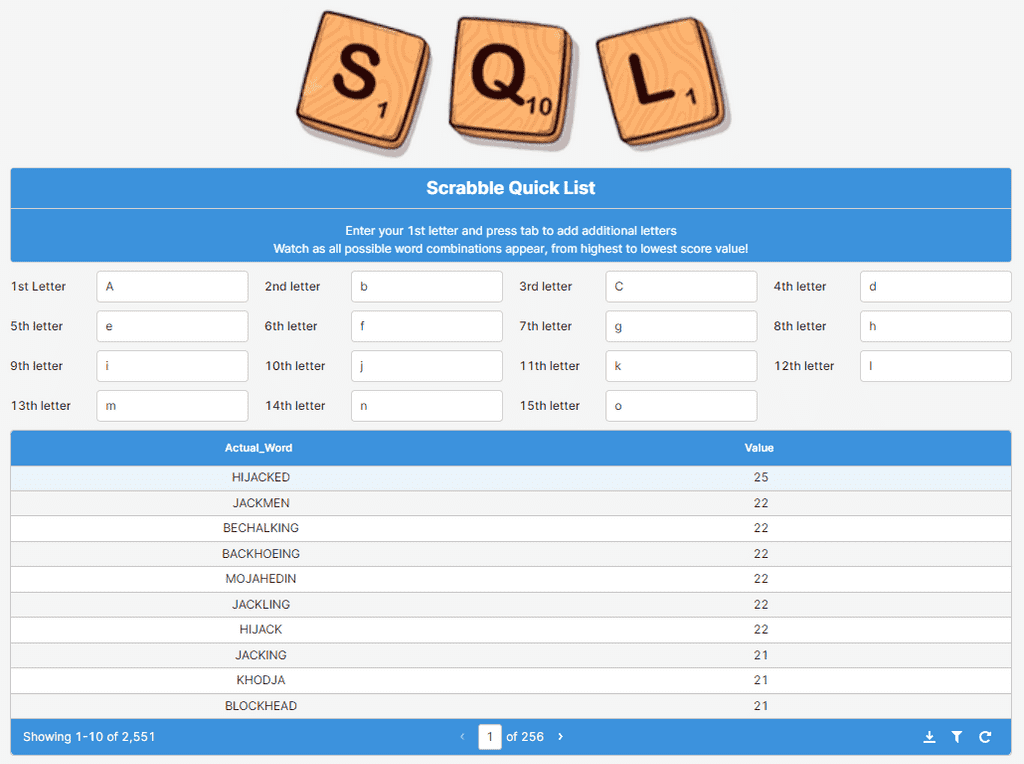

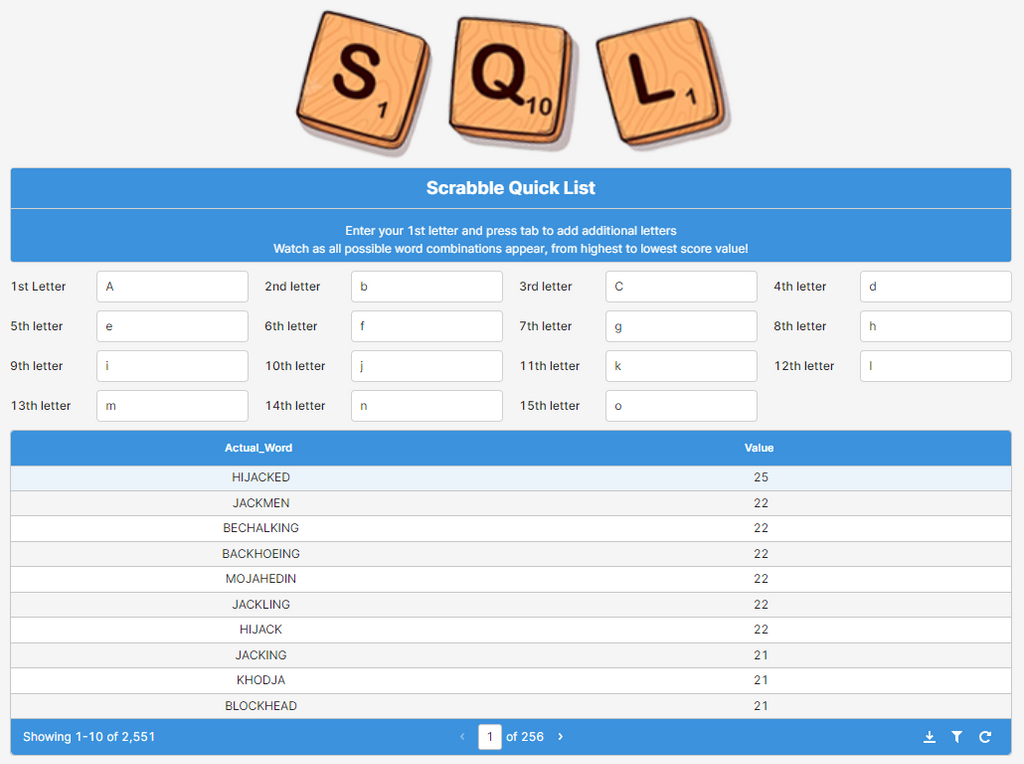

sql final result

Uplifting Home Page to showcase SQL

With my app in a good state my next task was to embed it into my website. My initial attempt involved looking at Retool's Embed functionality which required self-hosting to create a personal access token and use the api to connect app to website. Unfortunately pursuing AWS deployment using their one-click deploy option continuously threw up errors, so I opted for the shortcut approach of simply creating a shareable public URL.

The final piece of the puzzle was to create a SQL icon on my home page that would serve as a hyperlink to the app site hosted via Retool.

After a long journey of trial, error and a whole lot of learning my app was born. Check it out below or available here.

If you've come this far thank you for coming along on this learning journey with me.

Resources:

https://www.reddit.com/r/SQL/comments/g4ct1l/comment/fnx11mc/

https://boardgames.stackexchange.com/questions/38366/latest-collins-scrabble-words-list-in-text-file

https://supabase.com/docs

https://docs.retool.com/docs

https://chat.openai.com/chat?model=gpt-4
